It’s time to break free

Bring your perfect studio guitar sound onstage with the new AmpliTube X-TIME delay pedal. This boutique, true stereo pedal features 16 all-new delay effects leveraging IK’s latest AmpliTube technologies, accompanied by an exclusive virtual X-GEAR version of the exact same effects. Use the virtual version with AmpliTube 5 (SE version included) to record and tweak settings and save as presets on your X-TIME pedal for world-class tone anywhere.

AmpliTube X-TIME overview

  • Breakthrough software and hardware integration for guitarists
  • State-of-the-art DSP in a road-worthy anodized aluminum chassis
  • 16 different algorithms, 50 factory presets (300 storable presets)
  • All-new delay algorithms, from tape echos to crystal-clear
  • Controls for Tap Tempo, BPM sync and Spillover/Trails function
  • Includes exclusive virtual X-TIME version for use in AmpliTube 5
  • USB port for preset management and use as a recording interface
  • Full MIDI implementation including control over AmpliTube 5
  • Designed and made in Italy for a lifetime of playing and gigging
0:00
0:00

Listen to audio demos


Best-in-show DSP

AmpliTube X-TIME leverages IK’s latest technologies for hyper-realistic emulations of real-world gear. The state-of-the-art DSP onboard offers 16 high-end algorithms, while a special X-MODE opens additional infinite-feedback effects. All combined, X-TIME delivers amazing clarity to the stage with the realism and response that users love about AmpliTube 5.

16 high-end algorithms

A classic tape echo with wobble effect that can be controlled and manipulated for experimental lo-fi echo repeats, bringing extra creativity to any playing. It features all the typical tape echo characteristics and nuances to bring a real tape sound under your feet.
IK’s Tape Echo recreates a modern echo sound with additional modulation controls over depth and speed to generate movement in the delay repeats, while maintaining all the typical characteristics that make the tape echo sound so sought-after.
This analog delay is harmonically rich and can be pushed to add color and the characteristic saturation of console preamplifiers, which blends perfectly with the direct sound coming from your instrument. Its sound can be shaped even further with its high-pass and low-pass filters.
A crystal clear digital delay sound, perfect for a high-fidelity wet signal. It also features a doubler mode to add width to delay tails, a great solution to widen up any sound and fill the entire stereo field.
This delay is designed to provide the perfect moving ping pong. The delay repeats left and right. In addition to the standard ping pong pattern, it also features another mode for panning the repeats Left-Center-Right and add a groovy “circular” effect.
This is the perfect model to find inspiration. It features 16 different delay patterns to experiment with and find new rhythmic ideas. In addition to standard delay repeats, the last 8 patterns also feature reversed repeats to really bring any line to the next level.
Two delays in one that can be set in series or in parallel to have an amazing stereo sound. The second delay reacts on the first one, but with independent mix, feedback and time that is expressed in ratios of the fist delay’s time.
Amazing reversed repeats that create wonderful delay tails. In addition to the reversed repeat, a non-reversed repeat can be blended in to maintain the groovy part of the delay pattern.
This is an advanced ping pong delay effect. The delay sound is sent to a reverb that can be modulated. Also the second tap of the ping pong pattern can be reversed to really get a very custom sound.
Gentle and ambient swell delays to cream up slow lines. The swell effect has independent time and depth so it can be synced with the delay or pushed crazier to un-synced rates. It features a sidechain mode to always track your playing and swell at the right time.
A delay that makes it possible to have huge amounts of wet signal and feedback while retaining the dry signal focused on top by ducking down the delayed signal every time the dry signal is played. The release can be tweaked independently to add both slow and fast rises.
A delay that pitches up or down from the original tone to create pitched effects in the repeats. It features two pitched notes to get a double-pitched effect and create a wall of lines in the delay by easily using one finger.
A delay that harmonizes up or down from the original tone to easily create delayed chords by playing just one note, thanks to its double harmonator. Harmonize any solo part by adding a delayed second or third harmony that follows your lead.
Get dirty with this saturated and distorted delay for edgy repeats and aggressive tails. It also features a phaser with independent speed and mix to really find the perfect grit and dirtiness in the delay lines.
Bring back the ’50s with this incredible slap back delay, which also features a modulated filter to move your slap backs in the stereo spectrum to transform this classy sound into a modern delay effect.
This delay is full of lush and never-ending tails. The delay is sent to a flanger and then to a shimmer with a customizable pitched voice to get very modulated and ethereal in any shape of form. This creates very modern delay trails great for ambient sounds.

Inside AmpliTube X-TIME

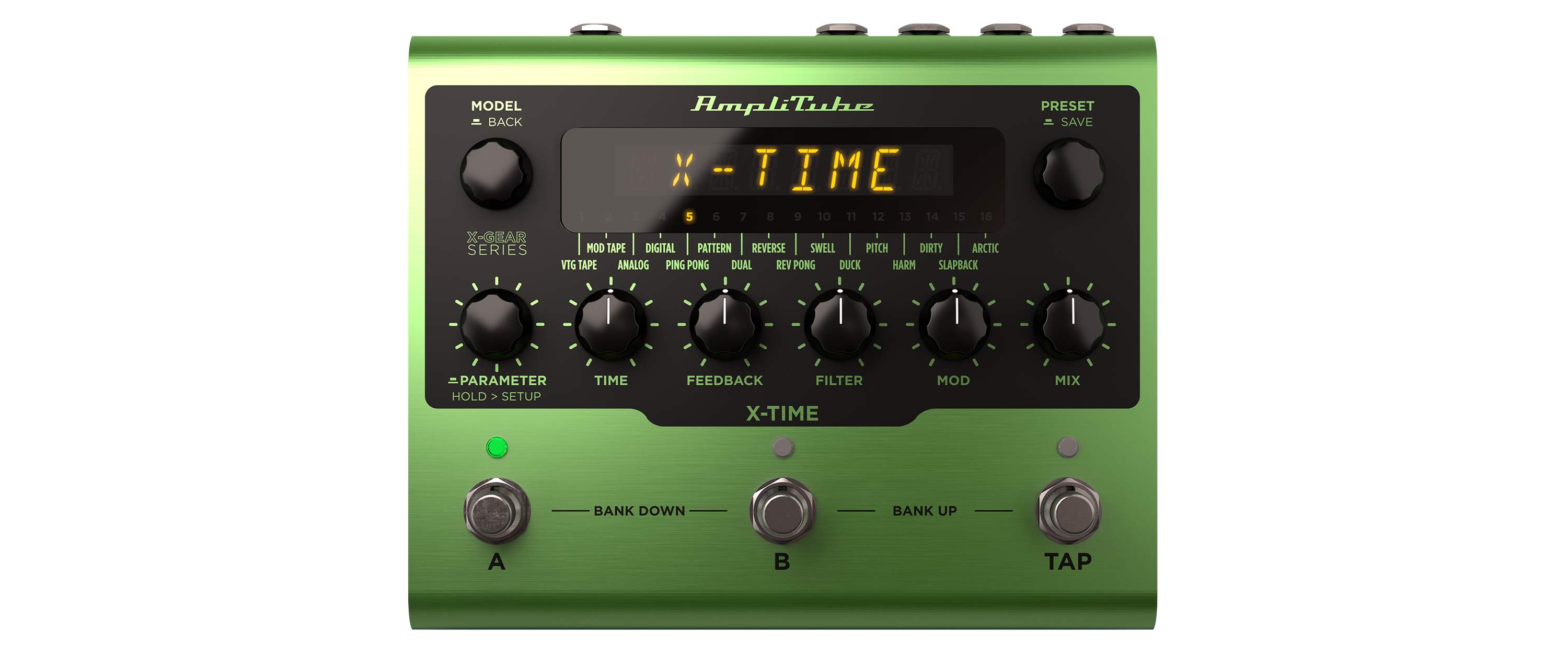

X-SPACE
1 2 3 4 5 6 7

MODEL Encoder
Turn the MODEL encoder to select the preferred X-TIME model among the 16 advanced algorithms available.
Push to go back when browsing in menus.

DISPLAY
Highly visible display for any stage, featuring eight 16-segment characters.
It can show the preset name, bank or program change number. When editing a parameter it shows its value.

PRESET Encoder
Turn the PRESET encoder to browse among the 300 presets available in the machine.
Push to save a preset and choose its name and bank position.

PARAMETER Encoder
Each model inside X-TIME has its own parameter set. Push the PARAMETER encoder to access the sub-parameters of the selected model.
Hold the PARAMETER encoder to access the global and preset setups.

MAIN PARAMETERS Knobs
Turn to edit the main parameters of the model.
Although these knobs are common to all X-TIME models their function is custom to each one.

A, B, TAP LEDS
Green if preset is active.
Amber if preset has been edited.
Blinking amber when browsing among banks.
Off if bypassed.
TAP blinks at preset current tempo. It blinks green when tempo is set internally, amber when tempo is set from the MIDI clock.

A, B, TAP FOOTSWITCHES
Press A or B to engage or bypass preset of the current bank.
Hold A or B to access the X-MODE for selected model.
Press A+B to select a lower bank.
Press B+TAP to select a higher bank.
Press TAP to tap the tempo of the delay.

  1. MODEL Encoder
    Turn the MODEL encoder to select the preferred X-TIME model among the 16 advanced algorithms available.
    Push to go back when browsing in menus.
  2. DISPLAY
    Highly visible display for any stage, featuring eight 16-segment characters.
    It can show the preset name, bank or program change number. When editing a parameter it shows its value.
  3. PRESET Encoder
    Turn the PRESET encoder to browse among the 300 presets available in the machine.
    Push to save a preset and choose its name and bank position.
  4. PARAMETER Encoder
    Each model inside X-TIME has its own parameter set. Push the PARAMETER encoder to access the sub-parameters of the selected model.
    Hold the PARAMETER encoder to access the global and preset setups.
  5. MAIN PARAMETERS Knobs
    Turn to edit the main parameters of the model.
    Although these knobs are common to all X-TIME models their function is custom to each one.
  6. A, B, TAP LEDS
    Green if preset is active.
    Amber if preset has been edited.
    Blinking amber when browsing among banks.
    Off if bypassed.
    TAP blinks at preset current tempo. It blinks green when tempo is set internally, amber when tempo is set from the MIDI clock.
  7. A, B, TAP FOOTSWITCHES
    Press A or B to engage or bypass preset of the current bank.
    Hold A or B to access the X-MODE for selected model.
    Press A+B to select a lower bank.
    Press B+TAP to select a higher bank.
    Press TAP to tap the tempo of the delay.

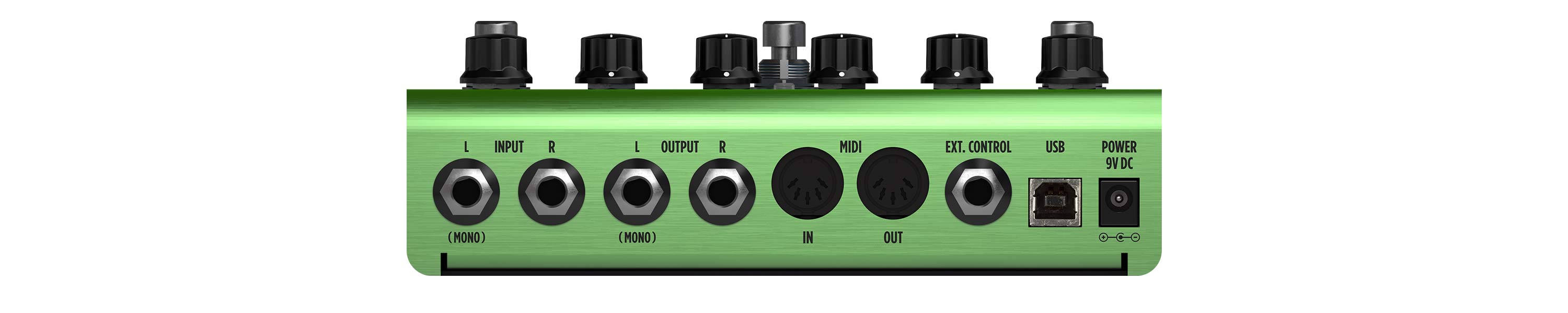

X-SPACE
1 2 3 4 5 6 7 8 9

INPUT L
Plug your instrument here.
Acts as a MONO INPUT when X-TIME is used in a MONO configuration.

INPUT R
Plug your instrument here when X-TIME is used in a STEREO configuration.

OUTPUT L
Connect to an amplifier, stomp box, PA or other devices.
Acts as a MONO OUTPUT when X-TIME is used in a MONO configuration.

OUTPUT R
Connect to an amplifier, stomp box, PA or other devices.

MIDI IN
Connect to external MIDI controllers to automatically change presets and parameters via control changes.

MIDI OUT
Connect to external MIDI devices. Through this port X-TIME can send out control changes anytime a switch is pressed or a knob is turned.

EXT. CONTROL
Hook up an external expression or single switch pedal to control any combinations of parameters with a single action.
Hook up a double switch pedal to easily move among banks or presets.

USB
Use this port to connect X-TIME to your Mac/PC as an audio interface and for using the Librarian app to organize and load presets.

POWER 9V DC
Power the pedal via a 9V DC center negative transformer.

  1. INPUT L
    Plug your instrument here.
    Acts as a MONO INPUT when X-TIME is used in a MONO configuration.
  2. INPUT R
    Plug your instrument here when X-TIME is used in a STEREO configuration.
  3. OUTPUT L
    Connect to an amplifier, stomp box, PA or other devices.
    Acts as a MONO OUTPUT when X-TIME is used in a MONO configuration.
  4. OUTPUT R
    Connect to an amplifier, stomp box, PA or other devices.
  5. MIDI IN
    Connect to external MIDI controllers to automatically change presets and parameters via control changes.
  6. MIDI OUT
    Connect to external MIDI devices. Through this port X-TIME can send out control changes anytime a switch is pressed or a knob is turned.
  7. EXT. CONTROL
    Hook up an external expression or single switch pedal to control any combinations of parameters with a single action.
    Hook up a double switch pedal to easily move among banks or presets.
  8. USB
    Use this port to connect X-TIME to your Mac/PC as an audio interface and for using the Librarian app to organize and load presets.
  9. POWER 9V DC
    Power the pedal via a 9V DC center negative transformer.

Hardware that stands out

For AmpliTube X-TIME we went all out to guarantee your tone stays as pure and pristine as possible, no matter how simple or sophisticated your signal chain becomes.

  • Ultra-low noise, 24-bit/192kHz converters for class-leading sound quality
  • 5 Hz–24 kHz frequency response to capture the full scope of your guitar’s sound
  • 112 dB dynamic range provides whisper-quiet operation at any gain setting
  • A pure analog dry path and selectable true or soft bypass for maximum control

Industry-leading integration

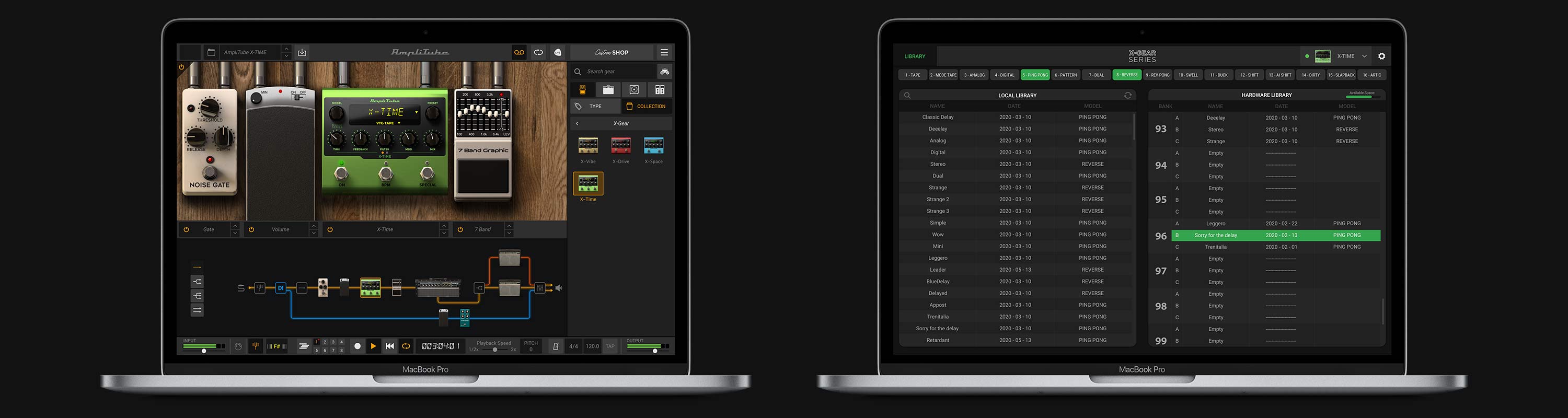

AmpliTube X-TIME includes a matching virtual version for Mac/PC and a copy of AmpliTube 5 SE. Open any version of AmpliTube 5 and you’ll find your virtual X-TIME pedal available as a stomp for use within the program. Adjust any of your pedal settings with the convenience of AmpliTube’s award-winning workflow and save them as presets. The X-GEAR Librarian lets you move presets between X-GEAR pedals and AmpliTube and easily reorganize them on the hardware pedal. You can store up to 300 presets per pedal.


All-in-one recording

With AmpliTube X-TIME there’s no need for any other gear when it comes to recording guitar. We’ve put a USB audio interface and some must-have recording features right onboard.

  • 5Hz to 24kHz frequency response to record the full range of your guitar or bass
  • Versatile routing options let you send the wet or dry signal to your DAW
  • Stereo out for monitoring sound between the X-TIME pedal and your computer
  • Full MIDI implementation to map control of AmpliTube and/or any compatible DAW

From soundcheck to final encore

When it’s time to play out, AmpliTube X-TIME holds everything you need to perform at your best. In fact, you can even leave your amp and cab at home, if you want to.

  • Fast, intuitive interface and control knobs to tweak your sound on the fly
  • High-contrast LED display keeps you informed on everything, indoors and out
  • Expression pedal input adds additional control over any parameter you choose
  • True stereo inputs and outputs on all algorithms for incredible signal chains
  • Full MIDI implementation is built-in for even the most complex setups
  • 5 cabinet impulse responses let you connect directly to a powered cab or PA

With great tone comes great portability

With its open architecture for future updates, AmpliTube X-TIME will empower you no matter where you are and for years to come. Experience the freedom of moving between the studio and stage seamlessly, confident that you and the audience hear your sound exactly as you created it to be.
