Specs

UNO Drum Specifications

Synthesis

  • Type: Analog/PCM
  • Polyphony: 11 voices
  • Kick 1 (analog): Level, Tune, Snap, Decay, FM Tune, FM amount, Sweep time
  • Kick 2 (analog): Level, Tune, Snap, Decay
  • Snare (analog): Level, Tune, Snap, Decay, LPF
  • Closed HH: Level, Tune, Decay
  • Open HH: Level, Tune, Decay
  • Clap: Level, Decay
  • PCM: Level, Tune, Decay
  • All element are Velocity responsive

Preset

  • 100 Kits
  • 100 Patterns

Keyboard and controls

  • 5 Encoders (4 matrix, 1 global)
  • 2 Knobs (fixed)
  • 12 Multi-Touch Element Pads with 2 velocity.
  • 17 Sequencer buttons
  • 17 Utility and effects buttons

Sequencer

  • 64-step sequencer
  • Real-time and step recording with parameter recording
  • Up to 8 parameter recording per-step
  • Selectable length between 1 and 64 steps
  • 4 Division: 16th, 32th, 3/4 and 6/8
  • Swing function

Effects

  • Analog master compressor
  • Analog master drive
  • Random
  • Stutter with 10 types and adjustable amount
  • Roll with 4 roll types and 4 fills

Connections

  • Audio Out: Mini-jack 3.5mm stereo (mono summed)
  • Audio In: Mini-jack 3.5mm stereo (mono summed)
  • 2 x MIDI 2.5mm mini-jack to DIN cables (IN/OUT)
  • 1 Micro USB*

Power

Package includes

  • UNO Drum
  • 1x Micro USB to USB-A cable (60cm/23.62")
  • 2x 2.5mm TRS male to MIDI female adapter (10cm / 3.9")
  • 4x AA batteries (Alkaline)

Dimensions

  • Size: 25.6cm/10.1" x 15cm/5.91" x 5cm/1.96"
  • Weight: 400g/14.1oz (excluded batteries)

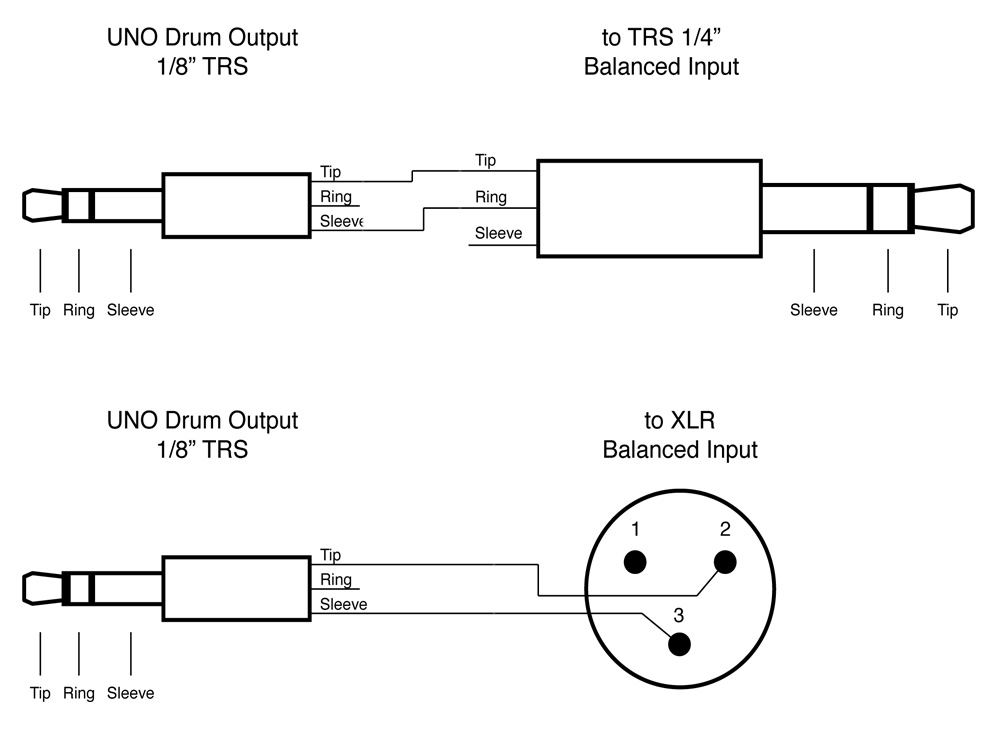

*USB power has inherent ground noise, so when connecting the UNO Drum directly to your computer via USB, you may hear more noise and interference than when the synth is connected to a USB wall charger or running via batteries. With the direct computer connection, you can reduce the USB ground noise and other interference by either using a USB isolator or a custom TRS cable into a balanced input on your preamp or audio interface where the ground is not connected at the balanced input side.

UNO DRUM

UNO Drum Editor Compatibility

UNO Drum Editor requires UNO Drum with firmware version 1.0.2 or later.

iOS devices

Compatible with 64-bit iPad. iOS 10 or later is required.

Computers

64-bit application. Requires a 64 bit CPU and Operating System.

Mac® (64-bits)

Minimal: macOS 10.11 or later.

Windows® (64-bits)

Minimal: Windows 8 or later.
