Specs

iLoud Micro Monitor Specifications

  • Type: 2-way active, bi-amped studio monitor
  • Frequency response (-10dB): 45Hz - 22kHz
  • Crossover frequency: 3kHz
  • Tweeter: 3/4" silk dome, neodymium magnet
  • Woofer: 3" high-rigidity custom composite material
  • Maximum SPL @ 50cm (with two speakers playing, averaged sinewave from 100 Hz to 10 kHz): 107dB
  • Number of amplifiers: 4
  • Amplifiers type: High Efficiency Class-D
  • Total output power (both speakers): 70W (peak) - 50W RMS
  • Low frequency output power (single speaker): 18W RMS
  • High frequency output power (single speaker): 7W RMS
  • Acoustic settings: high shelf (0dB or +2dB from 4kHz up); low shelf (0dB or -3dB from 250Hz down); desktop (+3.5dB between 1kHz and 10kHz and -1dB below 400Hz)
  • System total latency (analog input): 1.02 ms
  • System total latency (Bluetooth input): 155 ms (depends on host implementation, tested on iPhone 6S / iOS 10.0.1)
  • High performance Bass-Reflex port
  • Totally DSP controlled
  • Connectors: 2 x RCA input (cable included); TRS 1/8" stereo input; 4-pin speaker connector (cable included)
  • Bluetooth® compatible with A2DP protocol
  • Size: 180mm/7.09" x 135mm/5.31" x 90mm/3.54"
  • Weight: 920g/32.45oz (left speaker), 800g/28.22oz (right speaker), 1,720g/60.67oz (left + right speaker)

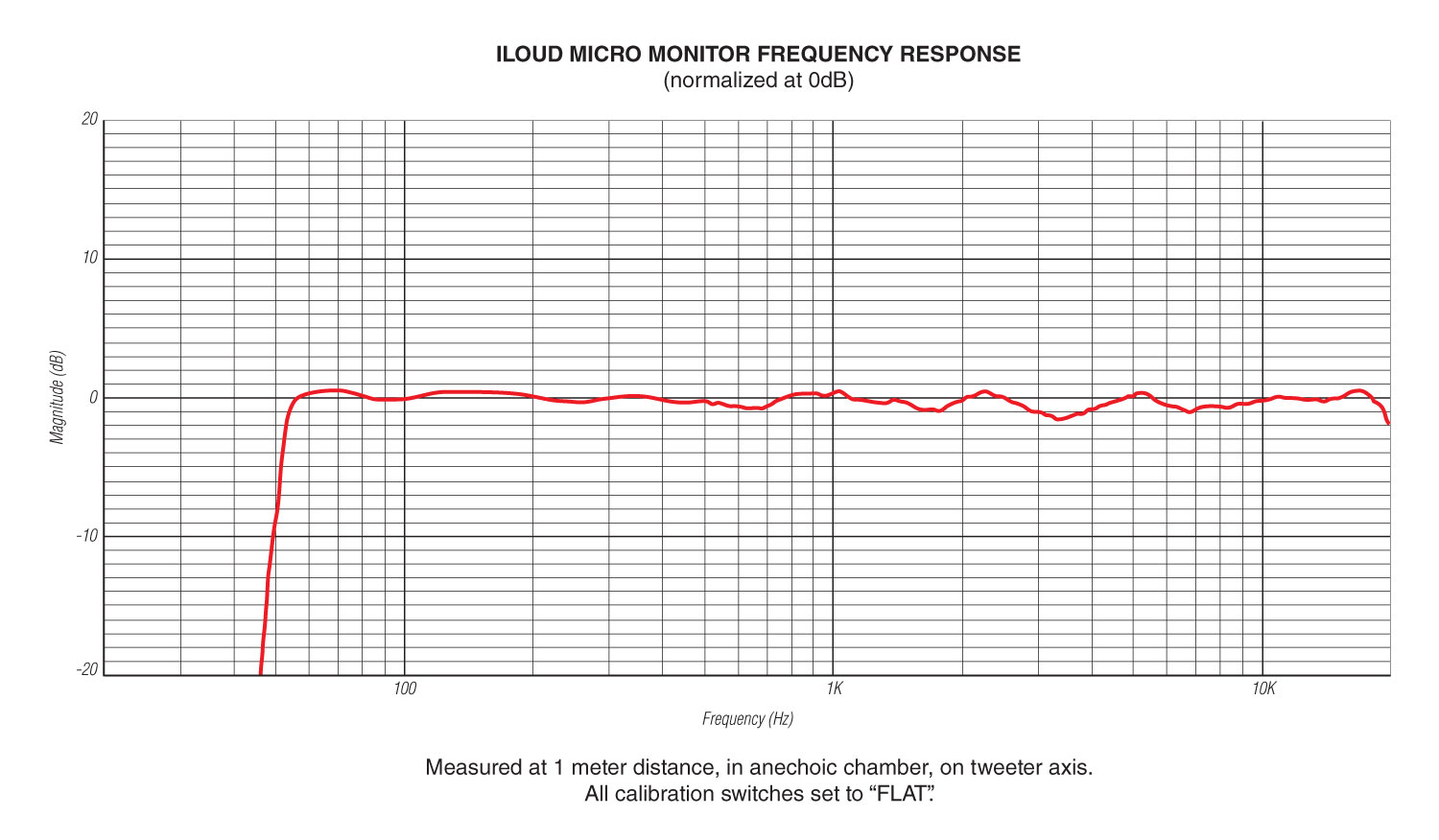

iloudmm_frequency_response

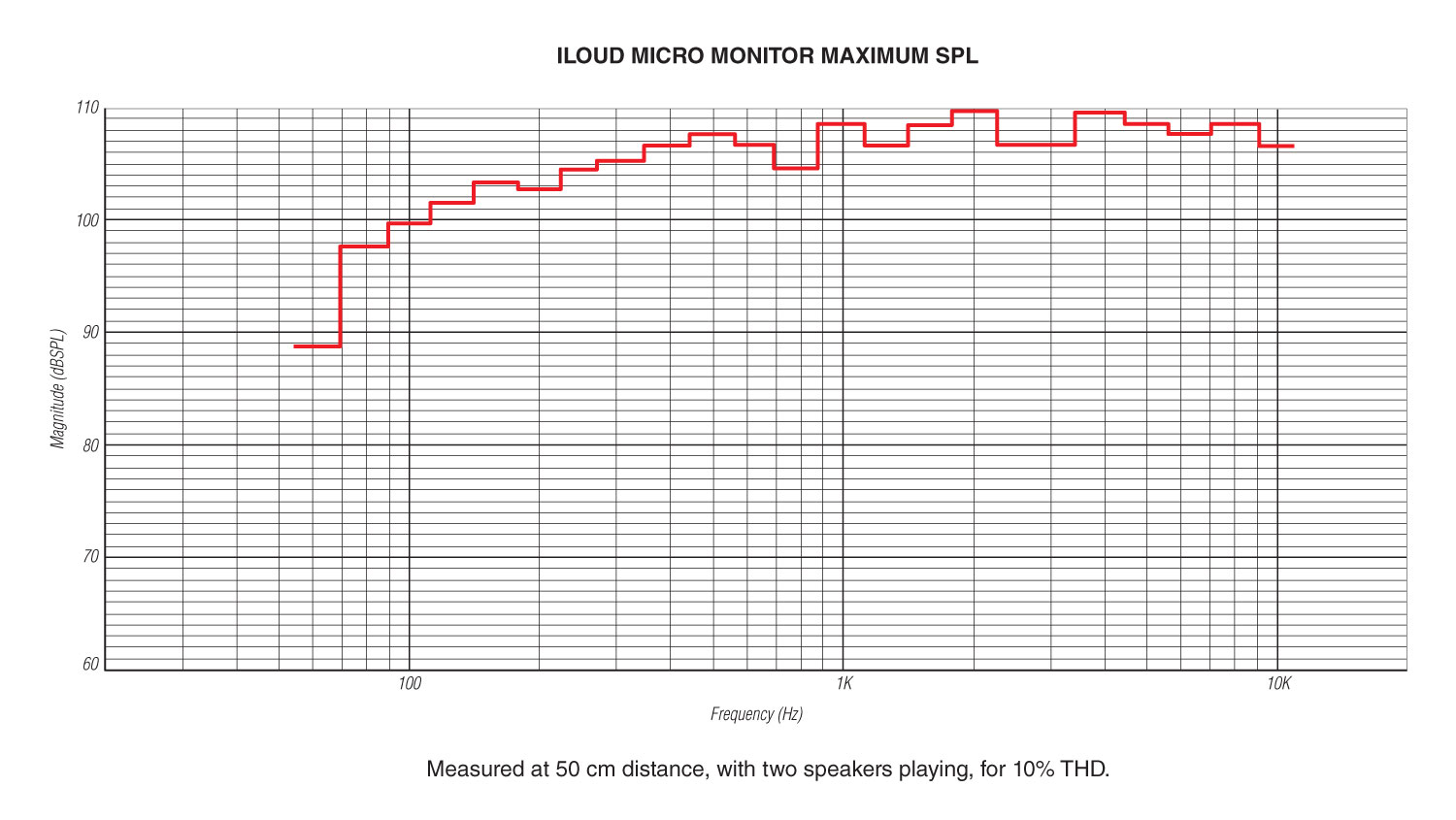

iloudmm_max_spl

Package includes

  • 2 x iLoud Micro Monitor speakers
  • Power supply unit
  • Power supply cable
  • 4-pin speakers connection cable (2m/6.56')
  • TRS 1/8" stereo to 2 x RCA cable (1.5m/4.92')

Dimensions

  • Size: 180mm/7.09" x 135mm/5.31" x 90mm/3.54"
  • Weight: 920g/32.45oz (left speaker), 800g/28.22oz (right speaker), 1,720g/60.67oz (left + right speaker)

System Requirements

iLoud Micro Monitor is equipped with a wired connection (RCA and TRS 1/8" stereo input) compatible with Mac, PC, iPhone, iPad, iPod, Android smartphones and tablets and MP3 players. It’s also compatible with most Bluetooth®-enabled devices compatible with A2DP protocol.

*Legal detail | Warranty
