It’s time to break free

Bring your perfect studio guitar sound onstage with the new AmpliTube X-SPACE reverb pedal. This boutique, true stereo pedal features 16 all-new reverb effects leveraging IK’s latest AmpliTube technologies, accompanied by an exclusive virtual X-GEAR version of the exact same effects. Use the virtual version with AmpliTube 5 (SE version included) to record and tweak settings and save as presets on your X-SPACE pedal for world-class tone anywhere

AmpliTube X-SPACE overview

  • Breakthrough software and hardware integration for guitarists
  • State-of-the-art DSP in a road-worthy anodized aluminum chassis
  • 16 different algorithms, 50 factory presets (300 storable presets)
  • Iconic sounds to pristine, modern reverbs + Spillover/Trails function
  • Includes exclusive virtual X-SPACE version for use in AmpliTube 5
  • USB port for preset management and use as a recording interface
  • Full MIDI implementation including control over AmpliTube 5
  • Designed and made in Italy for a lifetime of playing and gigging
0:00
0:00

Listen to audio demos


Best-in-show DSP

AmpliTube X-SPACE leverages IK’s latest technologies for hyper-realistic emulations of real-world gear. The state-of-the-art DSP onboard offers 16 high-end algorithms, while a special X-MODE opens additional infinite-feedback effects. All combined, X-SPACE delivers amazing clarity to the stage with the realism and response that users love about AmpliTube 5.

16 high-end algorithms

A complex shimmer that offers increasing feedback. The pitch can go from 1/4 semitone up to an octave creating many different customizable shifting voicings.
Shimmer 2 differs from the first one because there is no build up in the feedback and the two different pitched voices can be set in parallel to create custom harmonizations.
This model recreates the ambience of a live concert hall with controlled decay and a reverb time range from 1 to 9 seconds to replicate from smaller venues up to larger clubs. With an advanced parameter set that features a 3-band decay trimmer, the sound of the hall can be highly tweaked to always find the perfect tail in which to place the instrument.
This model adds the third dimension of a room to the direct sound in order to place it in a physical space and obtain a more natural sounding performance. Thanks to the 3-band decay trimmer any room can be recreated giving infinite possibilities. Its time range goes from 0.5 to 3 seconds offering a great option for a reverb that adds character without noticing the reverb itself.
This model offers the typical chamber sound found in many professional recording studios and provides a highly reflected and bright tail that’s perfect for aggressive reverb tones. Its time range goes from 1 to 9 seconds like the hall model, but the chamber has way more character and vibe.
This model has the longest tail in order to reproduce the typical reverb sound found in churches. Its reverb time has a range from 8 to 20 seconds to replicate from the smallest chapel to the biggest cathedrals.
This model can recreate different iconic plate reverbs. Its time has a range from 0.5 to 5 seconds and the flavor is highly customizable through custom parameters, which let you emulate different types of plates by emphasizing the decay of certain frequencies and dampening others.
This is a customizable spring reverb model, which emulates the vintage spring modules typically installed on guitar amplifiers.
This is a swell processor that can automatically create fantastic fading swell effects followed by a customizable reverb trail to create dreaming pads or string-like sounds.
This is a customizable gated reverb that cuts off the reverb trail as desired in order to add textured groove to your playing.
This model is perfect to create reverse delay trails that fade in while you are playing. The reverse envelope can be set to 3 different modes to better fit the part.
This model emulates the typical short reflections that can be heard in a small room or space. It’s fully customizable to bring it from a sort of traditional delay to a buzzing early reflection sound.
This is a combination of two processors in one model. One is a plate reverb that gets modulated by the second one, which is a vintage phaser to add extreme modulated tails.
This is a highly modulated plate that recreates moving airy trails and adds magic to your lines.
This reverb makes your simple lead parts bloom up and become very rich and noticeable. It is a swell like effect to give movement and vibe to your parts.
This is a spatial reverb that has an airy tone with an accentuated modulation effect, which at low rates creates an effect of space floating.

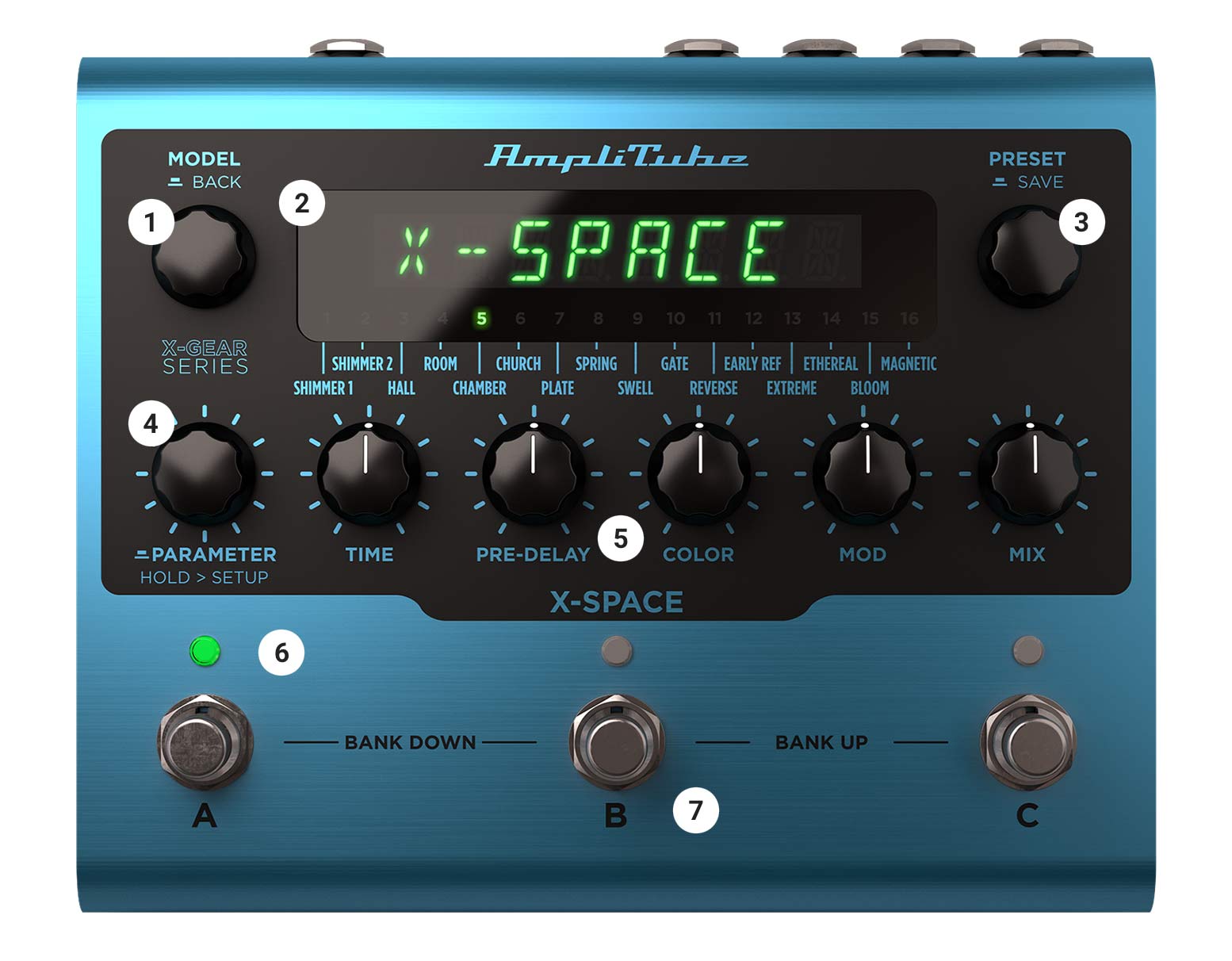

Inside AmpliTube X-SPACE

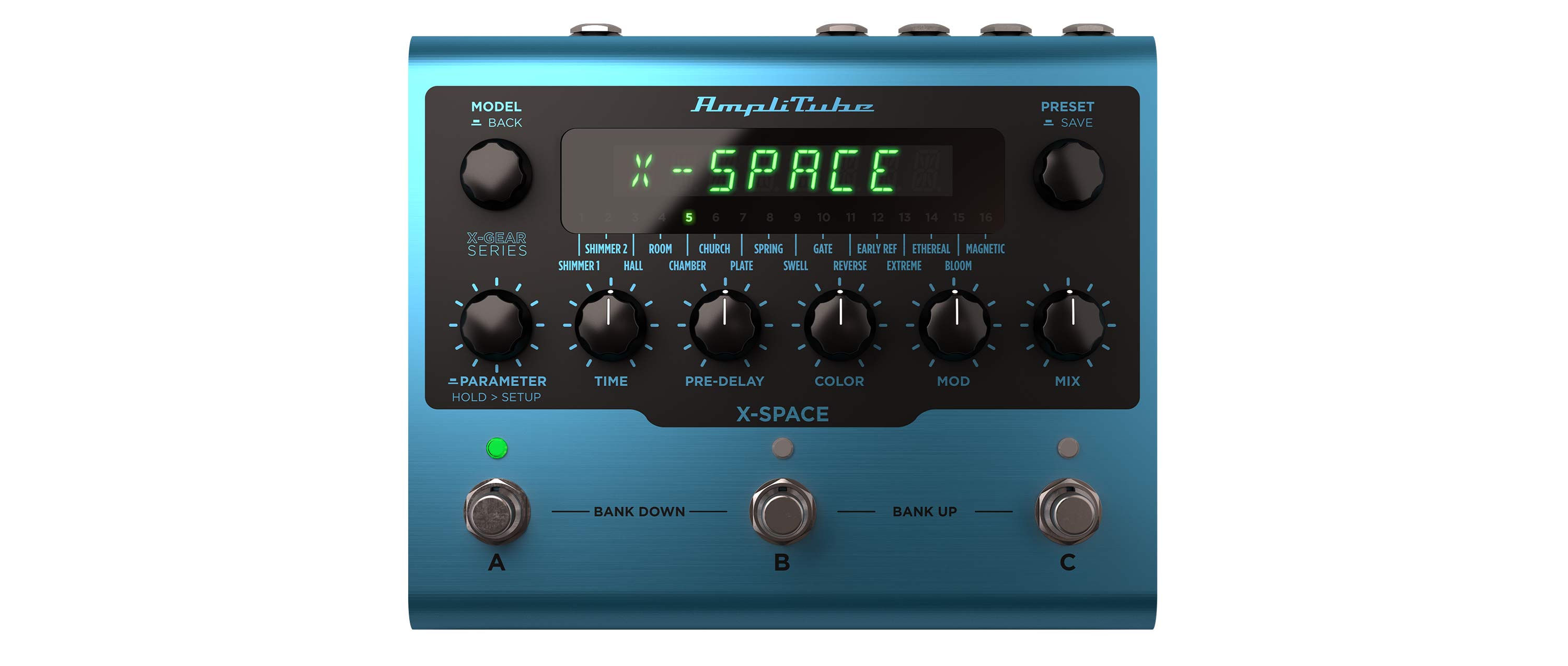

X-SPACE
1 2 3 4 5 6 7

MODEL Encoder
Turn the MODEL encoder to select the preferred X-SPACE model among the 16 advanced algorithms available.
Push to go back when browsing in menus.

DISPLAY
Highly visible display for any stage, featuring eight 16-segment characters.
It can show the preset name, bank or program change number. When editing a parameter it shows its value.

PRESET Encoder
Turn the PRESET encoder to browse among the 300 presets available in the machine.
Push to save a preset and choose its name and bank position.

PARAMETER Encoder
Each model inside X-SPACE has its own parameter set. Push the PARAMETER encoder to access the sub-parameters of the selected model.
Hold the PARAMETER encoder to access the global and preset setups.

MAIN PARAMETERS Knobs
Turn to edit the main parameters of the model.
Although these knobs are common to all X-SPACE models their function is custom to each one.

A, B, C LEDS
Green if preset is active.
Amber if preset has been edited.
Blinking amber when browsing among banks.
Off if bypassed.

A, B, C FOOTSWITCHES
Press to engage or bypass preset of the current bank.
Hold to access the X-MODE for selected model.
Press A+B to select a lower bank.
Press B+C to select a higher bank.

  1. MODEL Encoder
    Turn the MODEL encoder to select the preferred X-SPACE model among the 16 advanced algorithms available.
    Push to go back when browsing in menus.
  2. DISPLAY
    Highly visible display for any stage, featuring eight 16-segment characters.
    It can show the preset name, bank or program change number. When editing a parameter it shows its value.
  3. PRESET Encoder
    Turn the PRESET encoder to browse among the 300 presets available in the machine.
    Push to save a preset and choose its name and bank position.
  4. PARAMETER Encoder
    Each model inside X-SPACE has its own parameter set. Push the PARAMETER encoder to access the sub-parameters of the selected model.
    Hold the PARAMETER encoder to access the global and preset setups.
  5. MAIN PARAMETERS Knobs
    Turn to edit the main parameters of the model.
    Although these knobs are common to all X-SPACE models their function is custom to each one.
  6. A, B, C LEDS
    Green if preset is active.
    Amber if preset has been edited.
    Blinking amber when browsing among banks.
    Off if bypassed.
  7. A, B, C FOOTSWITCHES
    Press to engage or bypass preset of the current bank.
    Hold to access the X-MODE for selected model.
    Press A+B to select a lower bank.
    Press B+C to select a higher bank.

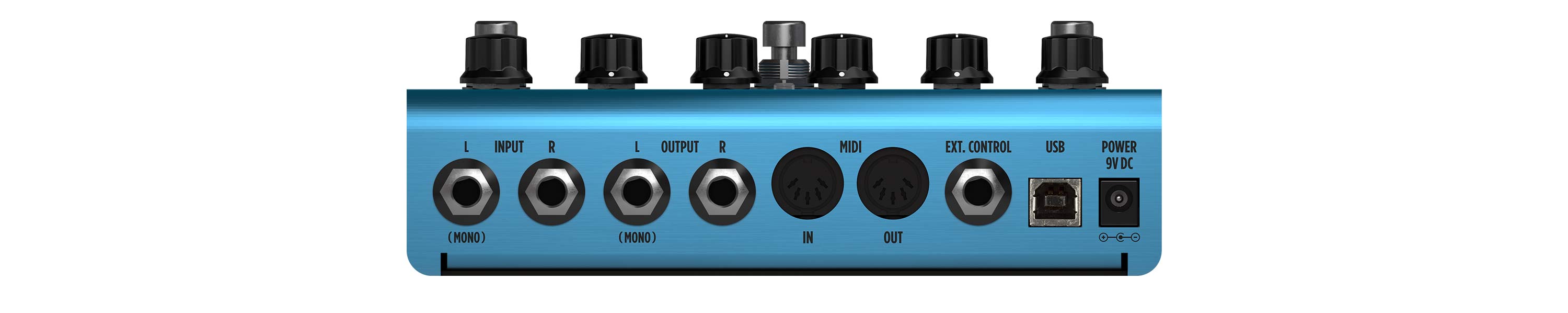

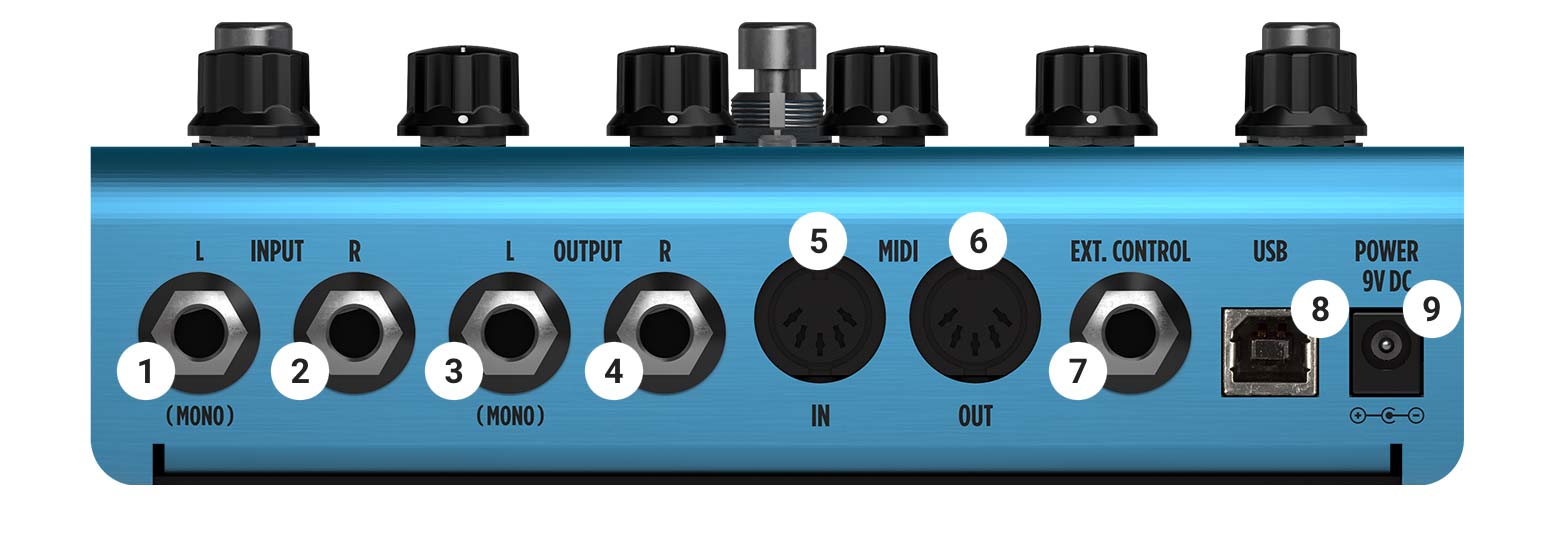

X-SPACE
1 2 3 4 5 6 7 8 9

INPUT L
Plug your instrument here.
Acts as a MONO INPUT when X-SPACE is used in a MONO configuration.

INPUT R
Plug your instrument here when X-SPACE is used in a STEREO configuration.

OUTPUT L
Connect to an amplifier, stomp box, PA or other devices.
Acts as a MONO OUTPUT when X-SPACE is used in a MONO configuration.

OUTPUT R
Connect to an amplifier, stomp box, PA or other devices.

MIDI IN
Connect to external MIDI controllers to automatically change presets and parameters via control changes.

MIDI OUT
Connect to external MIDI devices. Through this port X-SPACE can send out control changes anytime a switch is pressed or a knob is turned.

EXT. CONTROL
Hook up an external expression or single switch pedal to control any combinations of parameters with a single action.
Hook up a double switch pedal to easily move among banks or presets.

USB
Use this port to connect X-SPACE to your Mac/PC as an audio interface and for using the Librarian app to organize and load presets.

POWER 9V DC
Power the pedal via a 9V DC center negative transformer.

  1. INPUT L
    Plug your instrument here.
    Acts as a MONO INPUT when X-SPACE is used in a MONO configuration.
  2. INPUT R
    Plug your instrument here when X-SPACE is used in a STEREO configuration.
  3. OUTPUT L
    Connect to an amplifier, stomp box, PA or other devices.
    Acts as a MONO OUTPUT when X-SPACE is used in a MONO configuration.
  4. OUTPUT R
    Connect to an amplifier, stomp box, PA or other devices.
  5. MIDI IN
    Connect to external MIDI controllers to automatically change presets and parameters via control changes.
  6. MIDI OUT
    Connect to external MIDI devices. Through this port X-SPACE can send out control changes anytime a switch is pressed or a knob is turned.
  7. EXT. CONTROL
    Hook up an external expression or single switch pedal to control any combinations of parameters with a single action.
    Hook up a double switch pedal to easily move among banks or presets.
  8. USB
    Use this port to connect X-SPACE to your Mac/PC as an audio interface and for using the Librarian app to organize and load presets.
  9. POWER 9V DC
    Power the pedal via a 9V DC center negative transformer.

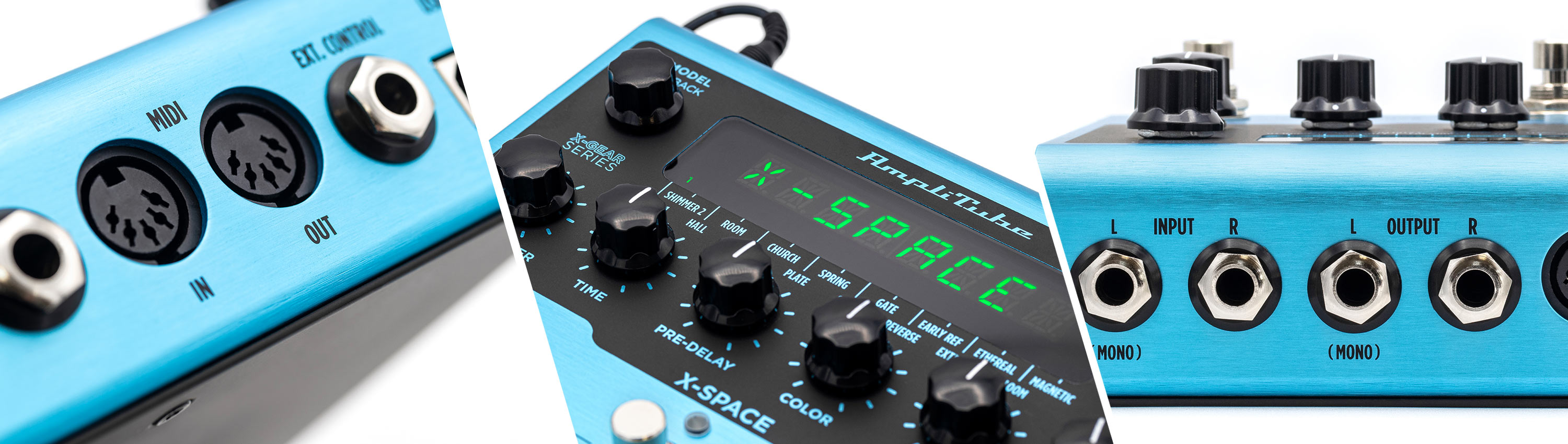

Hardware that stands out

For AmpliTube X-SPACE we went all out to guarantee your tone stays as pure and pristine as possible, no matter how simple or sophisticated your signal chain becomes.

  • Ultra-low noise, 24-bit/192kHz converters for class-leading sound quality
  • 5 Hz–24 kHz frequency response to capture the full scope of your guitar’s sound
  • 112 dB dynamic range provides whisper-quiet operation at any gain setting
  • A pure analog dry path and selectable true or soft bypass for maximum control

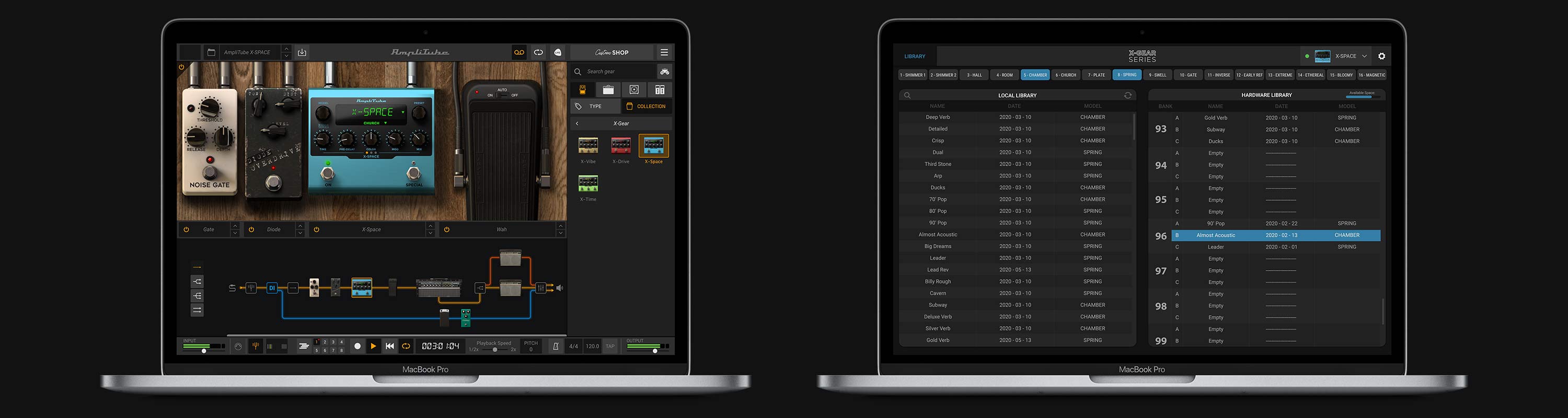

Industry-leading integration

AmpliTube X-SPACE includes a matching virtual version for Mac/PC and a copy of AmpliTube 5 SE. Open any version of AmpliTube 5 and you’ll find your virtual X-SPACE pedal available as a stomp for use within the program. Adjust any of your pedal settings with the convenience of AmpliTube’s award-winning workflow and save them as presets. The X-GEAR Librarian lets you move presets between X-GEAR pedals and AmpliTube and easily reorganize them on the hardware pedal. You can store up to 300 presets per pedal.

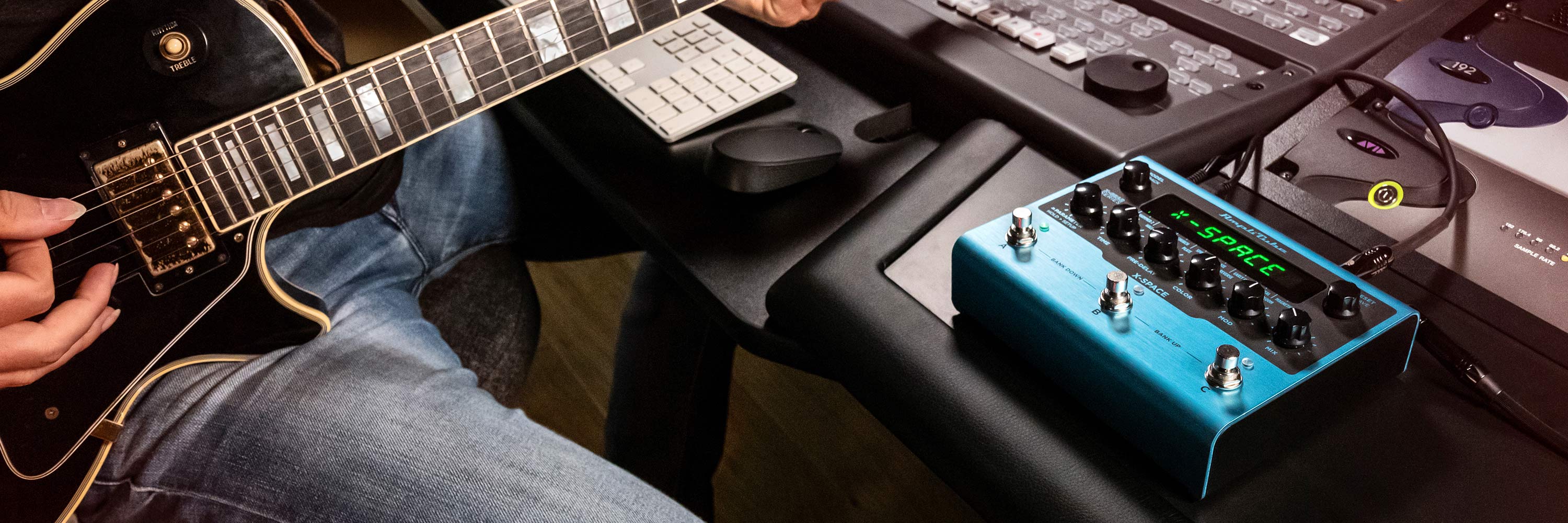

All-in-one recording

With AmpliTube X-SPACE there’s no need for any other gear when it comes to recording guitar. We’ve put a USB audio interface and some must-have recording features right onboard.

  • 5Hz to 24kHz frequency response to record the full range of your guitar or bass
  • Versatile routing options let you send the wet or dry signal to your DAW
  • Stereo out for monitoring sound between the X-SPACE pedal and your computer
  • Full MIDI implementation to map control of AmpliTube and/or any compatible DAW

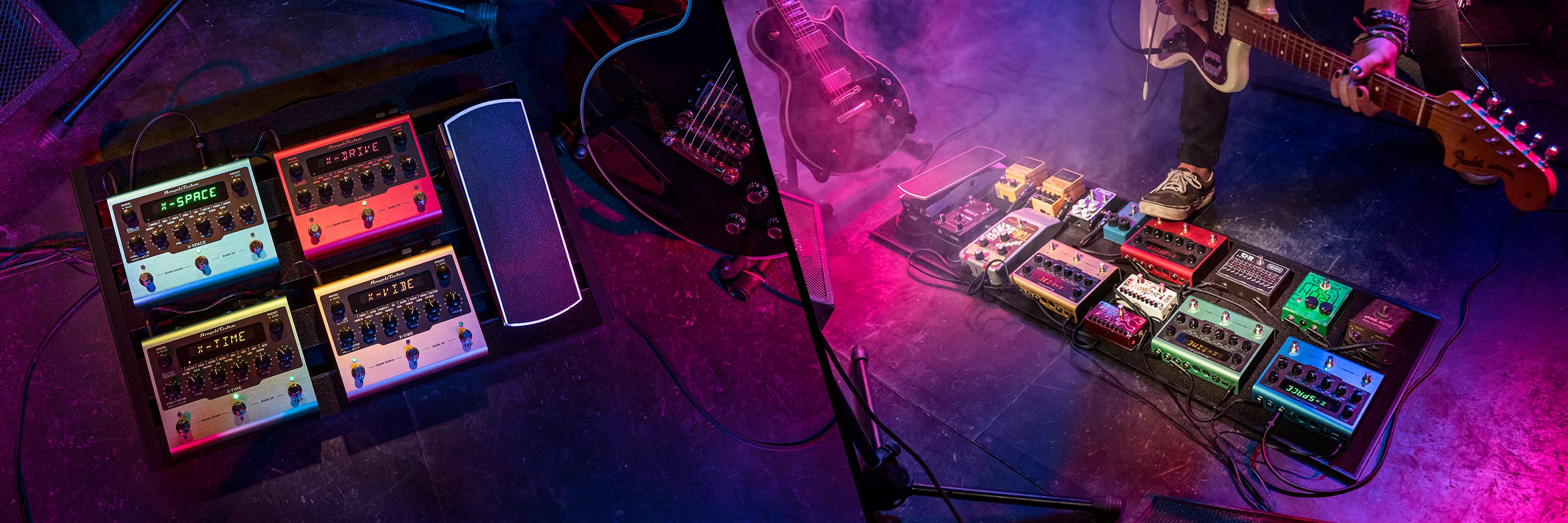

From soundcheck to final encore

When it’s time to play out, AmpliTube X-SPACE holds everything you need to perform at your best. In fact, you can even leave your amp and cab at home, if you want to.

  • Fast, intuitive interface and control knobs to tweak your sound on the fly
  • High-contrast LED display keeps you informed on everything, indoors and out
  • Expression pedal input adds additional control over any parameter you choose
  • True stereo inputs and outputs on all algorithms for incredible signal chains
  • Full MIDI implementation is built-in for even the most complex setups
  • 5 cabinet impulse responses let you connect directly to a powered cab or PA

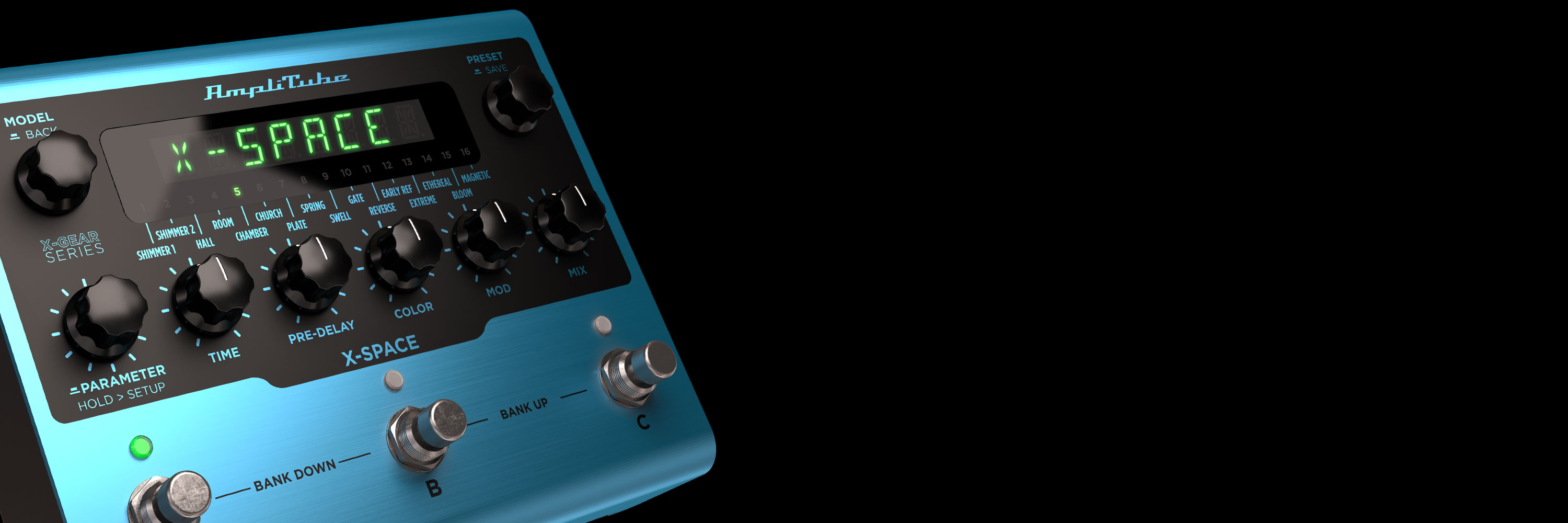

With great tone comes great portability

With its open architecture for future updates, AmpliTube X-SPACE will empower you no matter where you are and for years to come. Experience the freedom of moving between the studio and stage seamlessly, confident that you and the audience hear your sound exactly as you created it to be.
